Z2 type swelling coupling sleeve, Z3 type swelling inner and outer cone ring, Z5 type swelling coupling sleeve

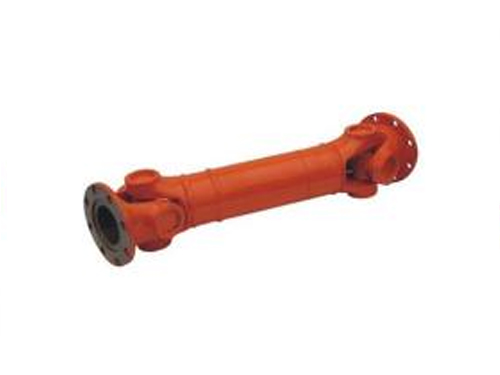

SWC_WH non-telescopic welded coupling is a commonly used coupling. Using its structural characteristics, it can make two shafts that are not on the same axis or with large axis angles or large axial movement to rotate continuously at constant angular speed, and transmit them in parallel. Torque and movement. ...

The SWCBF standard telescopic flange universal coupling makes its center of mass or inertial main axis do not coincide with the axis of rotation due to various reasons, and will produce unbalanced centrifugal inertial force, centrifugal inertial couple force and dynamic deflection (vibration shape) during operation. The phenomenon is called the unevenness of the rotor...

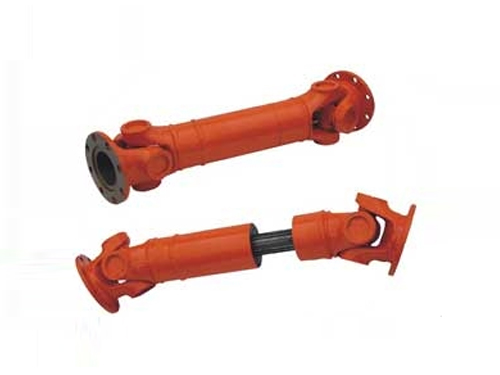

SWP_C non-telescopic short universal coupling is a commonly used coupling. Using its structural characteristics, it can make two shafts that are not on the same axis or with large axis angles or large axial movement to rotate continuously at equal angular speed, and Ground transmission torque and motion, can be widely used in metallurgy, lifting, engineering transportation, mining, petroleum...

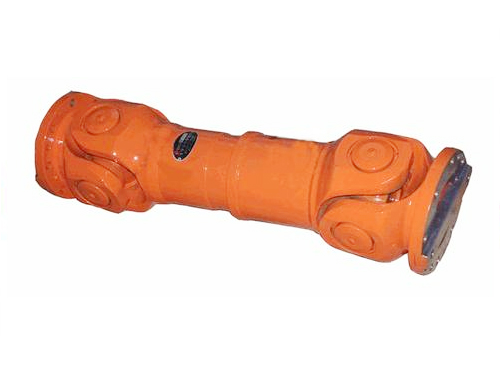

SWCWF non-telescopic flange type universal coupling, especially the improved type, has large transmission torque, compact structure, beautiful appearance, long service life, convenient maintenance, and wide application range compared with other structural types of universal couplings. Features. ...

The diaphragm coupling compensates for the relative displacement of the two shafts connected by the elastic deformation of the diaphragm. It is a kind of flexible coupling with strong metal elements. It does not require lubrication, has a compact structure, long service life, and no rotation gap. It is not affected by temperature and oil pollution, has the characteristics of acid and alkali resistance, and is suitable for high temperature, high speed,...

Polyurethane plum-shaped elastomer has excellent oil resistance, tear resistance, and chemical resistance. However, the polyurethane plum-shaped elastic block has poor heat resistance and is easy to soften and decompose at high temperatures, resulting in sharp mechanical properties. Decrease, long-term use temperature cannot exceed 80 degrees Celsius ...

GB4323-84 polyurethane elastic sleeve is mainly used for the accessories of elastic sleeve pin coupling. GB4323-84 polyurethane elastic sleeve has a longer life, better elasticity, more oil resistance than the previous rubber elastic sleeve. It can also be used widely. Polyurethane elastic sleeves for cushioning and damping equipment for water pumps, motors, couplings, etc. ...

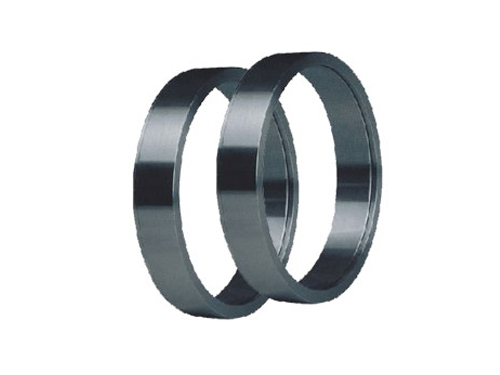

Z1 type expansion coupling sleeve is composed of inner and outer cone rings.The structure is compact and light, suitable for occasions with small installation space.It can be used instead of various key connections or interference fit connections.In order to transmit large loads, multiple pairs of expansion sleeves can be used. The single-sided compression does not exceed 4 pairs of rings, and the double-sided compression can reach 8 pairs of rings, with good centering. ...

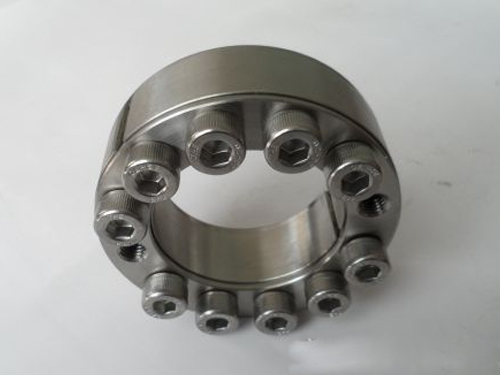

The Z2 type expansion coupling sleeve is composed of an open double cone inner ring, an open double cone outer ring and two double cone compression rings. It is tightened with hexagon socket bolts. When tightening, the elastic ring is not axially relative to the hub. Compared with the Z1 type, the radial pressure and the transmitted load can be generated by the same pressing force. ...

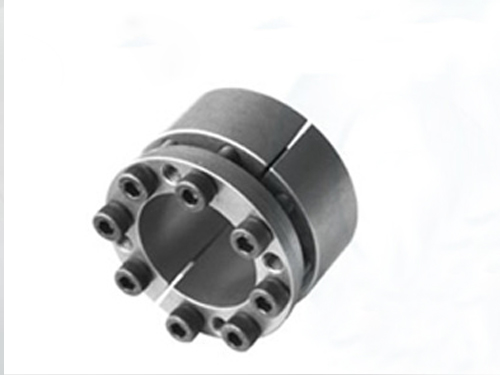

The Z3 type expansion inner and outer cone rings are tightened with hexagon socket bolts, which can transmit large loads, and there is a disassembly threaded hole on one cone ring; the joint surface is longer, and the neutrality is good, which is suitable for high rotation accuracy requirements and transmission of large loads. Occasions. ...
