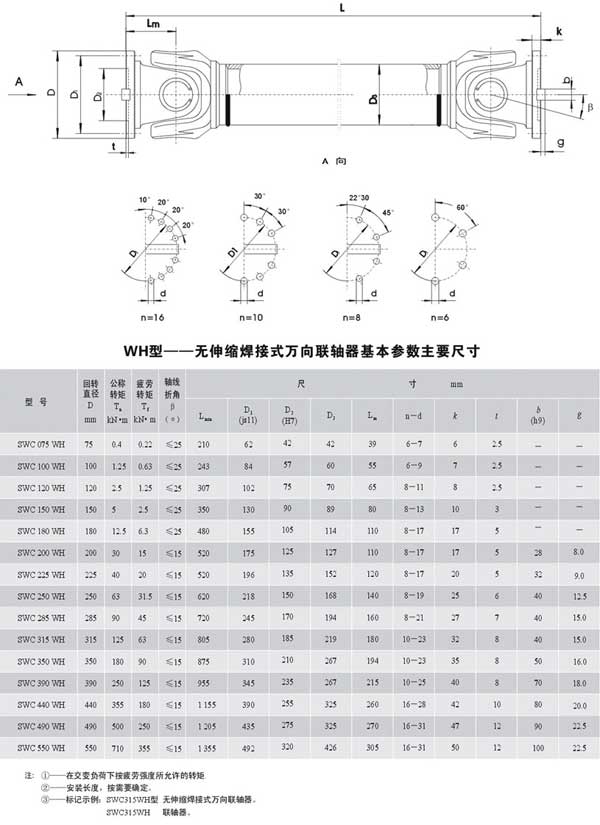

SWC_WH non-telescopic welding coupling

SWC_WH non-telescopic welded coupling is a commonly used coupling. Using its structural characteristics, it can make two shafts that are not on the same axis or with large axis angles or large axial movement to rotate continuously at constant angular speed and transmit in parallel. Torque and movement.

SWC_WH non-telescopic welded universal coupling is characterized by displacement compensation in all directions, compact structure, transmission, and convenient maintenance.

SWC_WH non-telescopic welded universal couplings are widely used in metallurgical machinery, petroleum machinery, papermaking machinery, engineering machinery, lifting and transporting machinery and other heavy machinery, etc.In our country, the cross-shaft universal joint standard is divided into SWP type (split bearing housing), SWl type (integral fork head), SWZ type (integral bearing housing) and so on according to the bearing fixing method.Various structural features have their own strengths.

The main feature of SWC-WH type cross shaft universal coupling is: a large angle compensation capability.Axis angle, SWC-WH type axis angle can reach 15 degrees to 25 degrees.The structure is compact and reasonable. SWC type adopts integral fork head to make carrying capacity.Large carrying capacity.Compared with other types of couplings with the same rotation diameter, the torque transmitted by this pair of mechanical equipment with restricted rotation diameter has a matching range.transmission.Its transmission efficiency is 98-99.8%, which is used for high-power transmission and energy saving.The carrying is stable, the noise is low, and the assembly, disassembly and maintenance are convenient.
