Z2 type expansion coupling sleeve

TAG recommendation:

Z3 type swelling inner and outer cone ring Z6 type expansion coupling sleeve Z5 type expansion coupling sleeve

Product Details

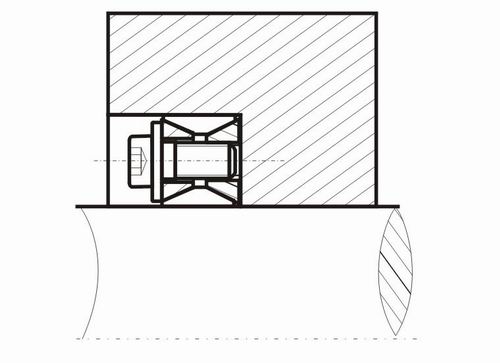

The Z2 type expansion coupling sleeve is composed of an open double cone inner ring, an open double cone outer ring and two double cone compression rings. It is tightened with hexagon socket bolts. When tightening, the elastic ring is not axially relative to the hub. Compared with the Z1 type, the radial pressure and the transmitted load can be generated by the same pressing force.In order to facilitate disassembly, there are screw holes for disassembly on a compression ring, and there are 2 to 4 holes along the circumference.The locking coupling disc is widely used in packaging, printing, textile, machine tools and other machinery.

Markup example:

内径d=130mm、外径D=180mm的Z2型胀紧联结套：胀套Z2-130×180

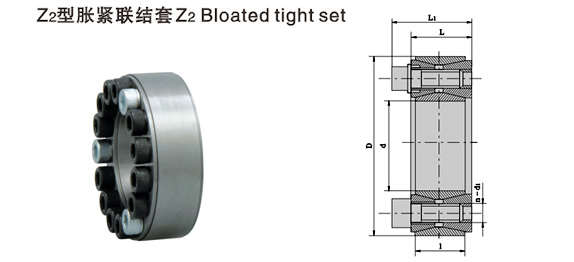

Parameters of Z2 Type Expansion Coupling Sleeve

basic size							Rated load		Expansion sleeve and shaft Bonding surface pressure Pf N / mm2	Expansion sets and wheels Hub interface Pressure on Pf′ N / mm2	Screw Tighten Moment MA N · m	weight kg
d	D	l	L	L1	d 1	n	Axial force F1KN	Torque M1 KN·m
mm						n	Axial force F1KN	Torque M1 KN·m
20	47	17	2O	27.5	M6	8	27	0.27	210	90	14	0.24
22	47					8	27	0.30	195	90		0.23
25	50					9	30	0.38	190	95		O.25
28	55					10	33	0.47	185	95		0.30
30	55					10	33	0.50	175	95		0.29
35	60					12	40	0.70	180	105		0.32
38	63					14	46	0.88	185	105		0.33
40	65					14	46	0.92	180	110		0.34
42	72	20	24	33.5	M8	12	65	1.36	200	117	35	0.48
45	75						72	1.62	210	125		0.57
50	80						71	1.77	190	115		0.60
55	85					14	83	2.27	200	130		0.63
60	90					14	83	2.47	180	120		0.69
65	95					16	93	3.04	190	130		0.73
70	110	24	28	39.0	M1	14	132	4.60	210	130	70	1.26
75	115						131	4.90	195	125		1.33
80	120						131	5.20	180	120		1.40
85	125					16	148	6.30	195	130		1.49
90	130					16	147	6.60	180	125		1.53
95	135					18	167	7.90	195	135		1.62
100	145	29	33	47.0	M12	14	192	9.60	195	135	125	2.01
105	150						190	9.98	185	130		2.10
110	155						191	10.50	180	125		2.15
120	165					16	218	13.10	185	135		2.35
125	170					18	220	13.78	180	130		2.95
130	180	34	38	52.0		20	272	17.60	165	120		3.51
140	190					22	298	20.90	165	125		3.85
150	200					24	324	24.20	170	125		4.07
160	210					26	350	28.00	170	130		4.30
170	225	38	44	60	M14	22	386	32.80	160	120	190	5.78
180	235	38	44	60		24	420	37.80	165	125		6.05
190	250	46	52	68		28	490	46.50	150	115		8.25
200	260	46	52	68		30	525	52.50	150	115		8.65
210	275	50	56	74	M16	24	599	62.89	151	115	295	10.10
220	285					26	620	68.00	150	115		11.22
240	305					30	715	85.50	160	125		12.20
250	315					32	768	96.00	162	125		12.70
260	325					34	800	104.00	165	130		13.20
280	355	60	66	86.5	M18	32	915	128.00	145	115	405	19.20
300	375	60	66	86.5	M18	36	1020	153.00	150	120	405	20.50
320	405	72	78	100.5	M20		1310	210.00	150	120	580	29.60
340	425	72	78	100.5	M20		1310	224.00	145	115	580	31.10
360	455	84	90	116.0	M22		1630	294.00	145	115	780	42.20
380	475						1620	308.00	135	110		44.00
400	495						1610	322.00	130	105		46.00
420	515					40	1780	374.00	135	110		50.00
450	555	96	102	130.0	M24	40	2050	461.25	124	100	1000	65.00
480	585					42	2160	518.40	124	100		71.00
500	605					44	2240	560.00	123	100		72.60
530	640					45	2330	617.00	121	100		83.60
560	670					48	2440	680.00	120	100		85.00
600	710					50	2580	775.00	118	100		91.00
630	740					52	2680	844.00	117	105		94.00
670	780					56	2820	944.00	116	100		101.00
710	820					60	2970	1054.00	115	100		106.00
750	860					62	3130	1173.00	115	100		112.00
800	910					66	3260	1300.00	112	100		118.00
850	960					70	3500	1487.00	113	100		125.00
900	1010					75	3680	1650.00	112	100		132.00
950	1060					80	3870	1838.00	112	100		139.00
1000	1110					82	4000	2000.00	110	100		146.00
Note: The mechanical performance level of Z2 type expansion coupling set screws is 12.9.
