GⅡCL drum gear coupling, GCLD drum gear coupling, CL gear coupling

GⅡCLZ-Drum-shaped gear coupling is composed of internal gear ring with the same number of teeth and flange half coupling with external teeth. The external teeth are divided into straight teeth and drum teeth. The so-called drum The shape tooth is to make the outer tooth into a spherical surface, the center of the spherical surface is on the gear axis, and the tooth side clearance is larger than that of ordinary gears. The drum-shaped gear unit...

The drum tooth surface of the GⅡCL drum-shaped gear coupling makes the contact condition of the inner and outer teeth, avoiding the disadvantages of spur tooth end edge extrusion and stress concentration under the condition of angular displacement, and at the same time, the friction and wear conditions of the tooth surface are improved. , The noise is reduced, and the maintenance period is long. ...

The GCLD drum gear coupling has the ability to compensate for axis deviations such as radial, axial and angular axis. It has the advantages of compact structure, small turning radius, large carrying capacity, low transmission, low noise and long maintenance cycle. It is especially suitable for Low-speed and heavy-duty conditions, such as metallurgy, mining, lifting and transportation industries, are also suitable...

CL type gear coupling has the ability to compensate for axis deviation in radial, axial and angular directions, and has the advantages of compact structure, small gyration radius, large transmission torque, transmission, low noise and long maintenance cycle. ...

TGL type nylon inner gear ring drum gear coupling. The inner gear ring material adopts MC nylon material, and the outer gear shaft sleeve adopts No. 45 forged steel. It has small size, light weight, low moment of inertia, low noise, and convenient assembly and disassembly. , No need for lubrication, etc., can be applied to small and medium torque working conditions, such as fans, pumps, lubrication...

NGCLZ type drum gear coupling with brake wheel has the ability to compensate for axis deviation in radial, axial and angular directions. It has the advantages of compact structure, small turning radius, large carrying capacity, low transmission, low noise and long maintenance period. , Especially suitable for low speed and heavy load conditions, such as metallurgy, mining, lifting and transportation industries...

WGP drum-shaped gear coupling with brake disc has two types of external teeth: straight teeth and drum-shaped teeth. The so-called drum-shaped teeth means that the external teeth are made into a spherical surface. The center of the spherical surface is on the axis of the gear and the tooth side clearance. Larger than general gears, drum-shaped gear couplings can allow larger angular displacement (compared to straight-tooth couplings), and the teeth can contact...

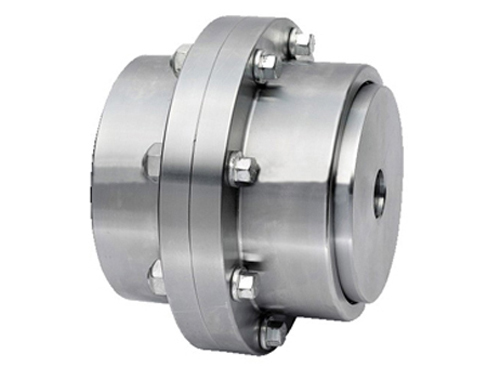

The drum gear coupling is a rigid-flexible coupling, which has the ability to compensate for axis deviations in the radial, axial and angular directions. Compared with the CL type straight gear coupling, it has a compact structure, a small turning radius, The advantages of large carrying capacity, low transmission, low noise and long maintenance period. ...

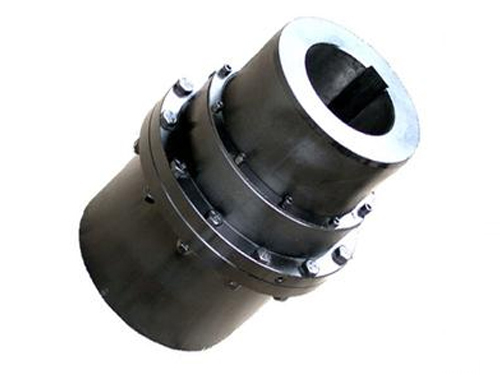

The external teeth of CLZ type gear coupling are divided into straight teeth and drum teeth. The so-called drum teeth means that the external teeth are made into a spherical surface. The center of the spherical surface is on the gear axis, and the tooth side clearance is larger than that of ordinary gears. , The drum-shaped gear coupling can allow a larger angular displacement (relative to the straight-tooth coupling), and the contact conditions of the teeth can be improved...

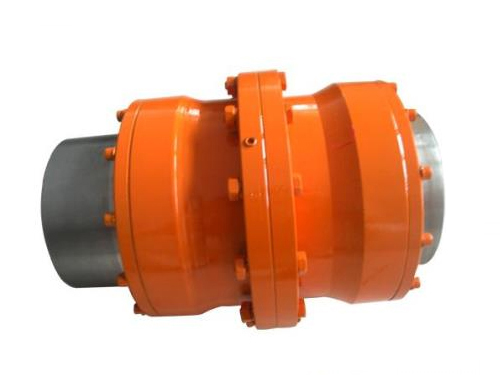

WGCⅡ drum-shaped gear coupling is a rigid-flexible coupling, with radial, axial and angular axis deviation compensation capabilities. Compared with the CL type straight gear coupling, it has a compact structure and a small turning radius. , The advantages of large carrying capacity, low transmission, low noise and long maintenance period. ...
