Description
When a worn Fenner Fenaflex spacer coupling needs replacement and the pump cannot wait for a full overseas lead time, the practical solution is a dimensionally identical drop-in replacement supplied locally. Our Fenaflex-compatible spacer coupling range matches the Fenaflex F40 through F140 standard exactly — bolt circle, pilot diameter, DBSE, tyre profile, hub register. The replacement installs into the existing baseplate without modification, restoring the drive to full service within one maintenance window.
Fenaflex Replacement Spacer Coupling Specifications
The Fenaflex-compatible range covers tyre sizes F40 to F140 and the four standard DBSE values of 80, 100, 140, and 180 mm. Misalignment capacity matches the Fenner original: 4 degrees angular per tyre element, 6 mm parallel offset, and 8 mm radial. The torque ratings, bore range, and rotational speed limits are identical to Fenaflex published specifications, ensuring that a replacement order arrives ready to drop into the existing installation envelope without any field rework.
| Fenaflex Size | Max Torque (N·m) | Max Speed (rpm) | Bore d (mm) | Std DBSE (mm) | Angular | Parallel |
|---|---|---|---|---|---|---|
| F40 | 10 | 4,800 | 12–20 | 80 / 100 | 4° | 6 mm |
| F50 | 20 | 4,500 | 14–25 | 80 / 100 | 4° | 6 mm |
| F60 | 40 | 4,000 | 16–30 | 80 / 100 / 140 | 4° | 6 mm |
| F70 | 70 | 3,800 | 18–34 | 80 / 100 / 140 | 4° | 6 mm |
| F80 | 100 | 3,600 | 20–38 | 100 / 140 | 4° | 6 mm |
| F90 | 150 | 3,400 | 22–42 | 100 / 140 | 4° | 6 mm |
| F100 | 200 | 3,200 | 25–48 | 100 / 140 / 180 | 4° | 6 mm |
| F110 | 300 | 3,000 | 28–52 | 140 / 180 | 4° | 6 mm |
| F120 | 400 | 2,800 | 32–56 | 140 / 180 | 4° | 6 mm |
| F140 | 800 | 2,500 | 40–65 | 140 / 180 | 4° | 6 mm |
Internal wire load reinforcement is wound in both rotational directions, supporting reverse-drive operation without the unwinding failures sometimes seen in cheaper aftermarket alternatives. F&H locking-ring tapered bushing mounts and B-type pilot-drilled flanges are both available, matching the two standard Fenaflex hub options. Pump spacer and flywheel mounting configurations are supplied to specification.
Fenaflex-compatible spacer coupling – direct dimensional replacement for Fenner Fenaflex F40 to F140 all DBSE values. Ever Power Flange Couplings Australia Ltd.
Why Fenaflex Compatibility Matters in Pump Maintenance
Fenaflex couplings have been the default tyre spacer specification across Australian water utilities, petrochemical plant, and process industry for several decades. The result is an installed base of thousands of pump sets where the baseplate dimensions, motor selection, and pump back pull-out length were all dimensioned around the Fenaflex envelope at the original engineering stage. Any replacement that varies from those dimensions — even slightly — risks demanding baseplate machining, motor repositioning, or alignment baseline recreation.
True dimensional compatibility means more than matching the tyre size on paper. The hub register diameter must match within microns to engage the existing motor and pump bolt patterns. The pilot diameter on the hub face must align with the existing motor coupling guard cutout. The DBSE must equal the pump’s specified back pull-out clearance exactly — not 5 mm shorter, not 5 mm longer. The internal wire wrap must support reverse drive for diesel engine and reversible motor applications. Our range satisfies every one of these dimensional and functional requirements.
Where Fenaflex Replacement is Most Frequently Specified
Centrifugal water utility pumps, refinery process pumps, chemical plant transfer pumps, and offshore platform fluid handling — these are the four core application areas where the Fenaflex spacer coupling has been the default specification, and consequently where Fenaflex replacement demand is highest in Australia today. The wide and pre-engineered tyre compound options (standard, FRAS, ATEX) further consolidated Fenaflex as the universal spacer choice across the safety-critical end of NSW industry.
Tyre Compound Options Matching the Fenaflex Range
The Fenaflex tyre range is supplied in three primary compounds. We match each exactly, with documentation appropriate to the use case so that site safety records and equipment dossiers remain consistent when the replacement enters service. Compound identification is moulded into the tyre body and visible without removal — this matters when site inspectors verify compound specification during periodic safety audits.
Default specification for clean indoor installations operating below +80°C. Lowest cost per unit and the longest service life under benign conditions. Suitable for water utility pump stations, HVAC, and general manufacturing applications where the operating environment is dry and chemically benign.
Fire Resistant Anti-Static rubber for NSW and Queensland underground coal mining installations. Meets the relevant Australian Mining Safety standards and ships with certificates of conformity. Required for all underground dewatering pumps, conveyor drives, and ventilation auxiliaries in NSW gassy coal mine classifications.
Tested and certified for hazardous-area classified zones. Required on offshore platforms, gas processing facilities, refineries, and fuel terminals where the operating environment is classified as potentially explosive. Compliance documentation supplied with each shipment.

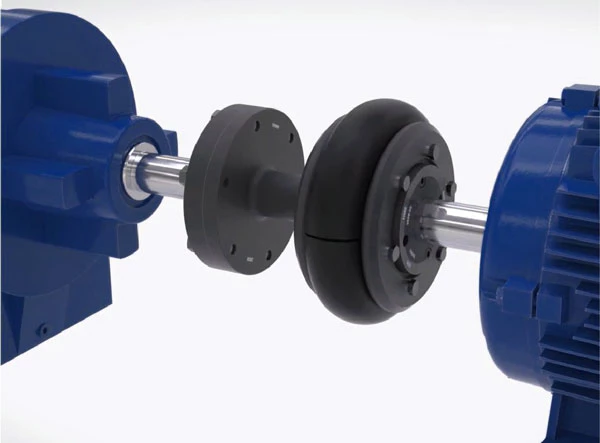

Fenaflex replacement coupling – tyre element and spacer tube field assembly. Matches Fenaflex F&H locking ring and B-type pilot drilled flange configurations.
Pump Rotor Removal Without Motor Disturbance
The single engineering benefit driving Fenaflex specification on pump installations is the back pull-out capability. With the spacer tube in place, the pump bearing housing and impeller assembly can be withdrawn axially from the volute casing without breaking the motor coupling connection. The motor stays bolted to the baseplate with its alignment dowels seated; only the spacer tube and the pump-side tyre element need to be removed to clear the maintenance path.
In practice this halves the duration of a typical mechanical seal replacement and reduces the risk of damaging the baseplate alignment baseline that has been verified during commissioning. For pump installations subject to NSW EPA reporting on unplanned downtime — water utility pump stations, wastewater lift stations — the predictability of a 2-hour seal change versus a 6-hour change has direct compliance and cost implications.
Typical Maintenance Time Comparison
On a typical horizontal end-suction process pump, replacing a mechanical seal with a Fenaflex spacer coupling installation takes approximately 90 to 120 minutes for an experienced crew, with no requirement to re-align the motor afterwards. The same task on a close-coupled pump without a spacer requires 4 to 6 hours including motor lift, removal of alignment dowels, and full laser alignment verification when the motor is replaced. The labour saving alone often justifies the spacer coupling premium within the first year of service.
Order Your Fenaflex Replacement Today
OEM Cross-Reference and Order Confirmation
When placing a Fenaflex replacement order, provide our Sydney team with the Fenaflex size code (e.g. F100 / 140 DBSE), the bore sizes at motor and pump ends, the keyway profile and orientation, and the tyre compound grade. We cross-reference your specification against the Fenner published dimensional standard and confirm the Ever Power equivalent before generating the order. Where the original Fenaflex documentation is unavailable, send a photograph of the existing coupling with a tape measure included for scale, and we identify the size from photographic reference within one business day.
Transfluid spacer coupling equivalents are also covered by our cross-reference work. Transfluid uses a similar dimensional structure to Fenaflex with minor variations on certain sizes; our engineering team identifies the appropriate Ever Power match and notes any dimensional differences before order confirmation. This eliminates the risk of receiving a part that does not fit the existing baseplate envelope on site.
Why Choose Ever Power Australia
Ever Power Flange Couplings Australia Ltd. is the dedicated Sydney-based flange coupling supplier for Fenaflex and equivalent OEM replacement spacer couplings across New South Wales and Australia. Our Condell Park warehouse stocks the complete F40 to F140 range in all three standard tyre compounds and all four standard DBSE values. Stock-confirmed orders dispatch same-day for the Sydney metropolitan area, with regional NSW and other capital city overnight or 1 to 3 day delivery. OEM cross-reference confirmation is included as a standard service — no consulting fees, no engineering charges.
Ever Power manufacturing facility — ISO 9001 certified, 12,000 m², 108 dedicated coupling machines, 20+ years of production experience.
Every order placed with our Sydney team is backed by full material traceability, dimensional inspection certificates on request, and direct access to the engineers who specified, machined, and packed your coupling. We do not subcontract technical support — when you phone +61 2 9708 3322 during NSW business hours, you reach the people who actually know the product.
Frequently Asked Questions
Quick answers from our Sydney technical team. Contact us for application-specific guidance.
1. Is the Ever Power coupling truly identical in fit to a Fenner Fenaflex original? +
2. How do I identify the size of my existing worn Fenaflex coupling? +
3. Can you supply FRAS-compound Fenaflex replacements for NSW coal mining sites? +
4. What is the lead time for non-standard or large-size replacements? +
5. Do you supply tyre elements separately for routine replacement? +
