JSB type axial mounting coupling

The J-type axial mounting coupling is a structured metal elastic coupling. The J-type axial installation coupling uses a serpentine spring leaf to axially embed the two halves of the coupling in the tooth groove to realize the connection between the prime mover and the working machine. Due to the performance of the reed, the original The resonance phenomenon between the motor and the working machine has a service life much longer than that of the non-metal elastic element coupling; the tooth surface contacted by the reed is arc-shaped, and the size of the contact surface changes with the size of the transmitted torque, so it can bear the load The amount of variation is determined that its short-term overload capacity is 2 to 3 times the rated torque, and the transmission efficiency reaches 99.5%..

The J-type axial installation coupling is used in a variety of different host products, and the surrounding working environment is more complicated, such as temperature, humidity, water, steam, dust, sand, oil, acid, alkali, corrosive medium, salt water, radiation, etc. Condition is one of the important factors to consider when choosing a coupling.For the working quality of high temperature, low temperature, oil, acid and alkali medium, it is not suitable to choose the flexible coupling using general rubber as the elastic element material, but the flexible coupling of the metal elastic element should be selected, such asDiaphragm coupling, Serpentine spring coupling, etc.

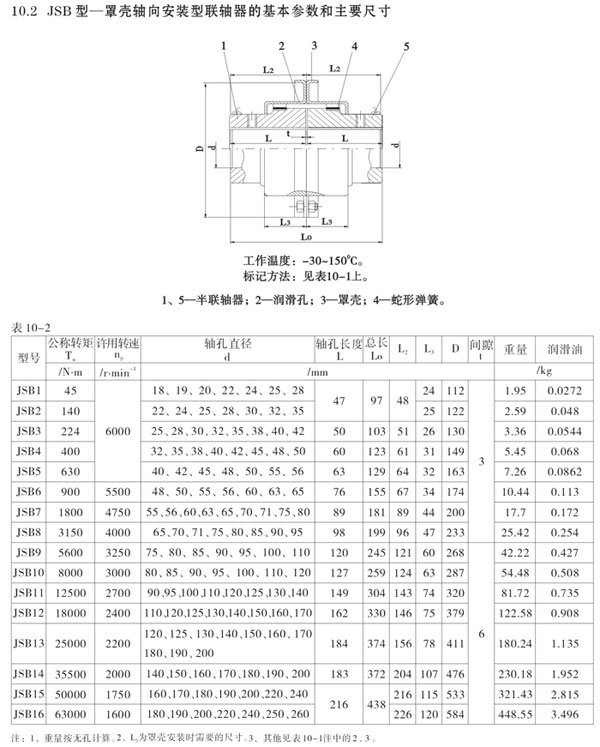

Parameters of J-type axial installation coupling:

The coupling model: J

Specification: J1-16

Nominal torque: 0.045-63

Permissible speed: 6000-1600

Diameter of shaft hole: 18-260

Length of shaft hole: 47-216

Material: cast steel

It can also be customized according to customer requirements.
