Z13 type expansion coupling sleeve
When the rated load of the Z13 expansion coupling sleeve is less than the load to be transferred, two or more expansion sleeves can be used in series, and the total rated load is: Mtn=m.Mt where: Mtn---n total rated expansion sleeves Load; m-load factor.
Tolerance and surface roughness of the bonding surface.
1.与胀套结合的轴和孔，其公差带按GB1800-79《公差与配合总论标准公差与基本偏差》和GB1801《公差与配合尺寸至500mm孔、轴公差带与配合》的规定。
2. The tolerance zone of the shaft and hole combined with the expansion sleeve is in accordance with the provisions of GB1031-83 "Surface Roughness Parameters and Values".The recommended ten-point height Rz of microscopic unevenness is listed in Table B.
The inner and outer cone rings of the Z13 expansion sleeve are tightened with hexagon socket bolts. The joint surface is longer and the neutrality is good. It is suitable for occasions with high rotation accuracy requirements and large load transmission.
Z13型胀紧套标记示例：内径d=130mm、外径D=180mm的Z2型胀紧联接套：胀套Z2-130×180。
Z13 type expansion sleeve is a kind of basic component widely used for mechanical connection under heavy load today. In the connection of wheel and shaft, it is a kind of load transmission by tightening the bolt to make the pressure and friction between the containing surface. Keyless coupling device.
The expansion sleeve is a keyless coupling device. Its principle and purpose is to generate huge holding force between the inner ring and the shaft, and between the outer ring and the hub through the action of the tension bolt, so as to realize the non-contact between the machine and the shaft. Key connection.When under load, torque, axial force or the combined load of the two are transmitted by the combined pressure of the expansion sleeve, the machine, the shaft and the accompanying friction force.The expansion sleeve connection has the following advantages: centering; easy installation/adjustment/disassembly; stable connection; it can protect the equipment from damage when overloaded, especially suitable for transferring heavy loads.It is widely used in heavy machinery, wind power generation, packaging machinery, printing machinery, CNC machine tools, automation equipment, etc.

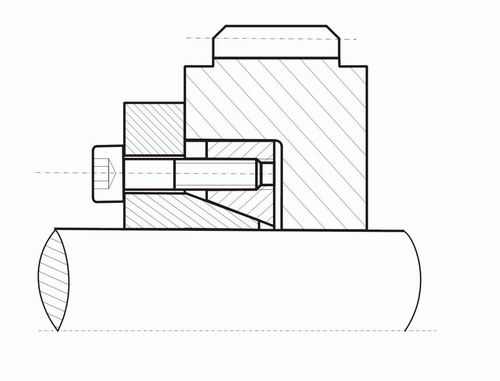

Installation reference example

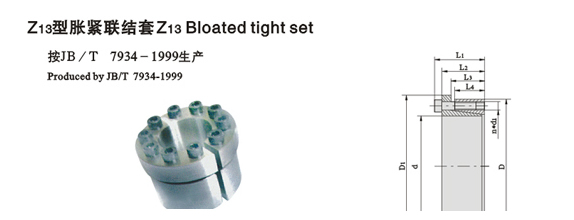

Parameters of Z13 Type Expansion Coupling Sleeve
| A Basic dimensions (mm) Dimensions | Rated load | Socket head cap screws | Pressure on joint surface between expansion sleeve and shaft pt N / mm2 | Pressure on the joint surface between expansion sleeve and wheel load pt N / mm2 | weight kg | |||||||||
| d | D | L1 | L2 | L3 | L4 | D1 | Torque Mt kN | Axial force Ft kN. m | d1 | n | MA N. m | |||
| 20 22 24 25 28 30 32 35 | 47 47 50 50 55 55 60 60 | 48 48 48 48 48 48 48 48 | 42 42 42 42 42 42 42 42 | 29 29 29 29 29 29 29 29 | 26 26 26 26 26 26 26 26 | 53 53 56 56 61 61 66 66 | 0.54 0.6 0.65 0.68 0.76 0.82 1.31 1.44 | 54 54 54 54 54 54 82 82 | M6 M6 M6 M6 M6 M6 M6 M6 | 7 7 7 7 7 7 11 11 | 14 14 14 14 14 14 14 14 | 276 253 230 222 198 186 261 240 | 117 118 110 111 100 101 139 140 | 0.51 0.53 0.55 0.65 0.62 0.80 0.70 0.81 |
| 38 40 | 65 65 | 48 48 | 42 42 | 29 29 | 26 26 | 71 71 | 1.56 1.64 | 82 82 | M6 M6 | 11 11 | 14 14 | 220 209 | 129 129 | 0.77 1.33 |
| 42 45 | 75 75 | 59 59 | 51 51 | 34.4 34.4 | 30 30 | 81 81 | 2.13 2.28 | 101 101 | M8 M8 | 6 6 | 41 41 | 213 199 | 119 119 | 1.24 1.44 |
| 48 50 55 60 | 80 80 85 90 | 59 59 59 59 | 51 51 51 51 | 34.4 34.4 34.4 34.4 | 30 30 30 30 | 86 86 91 96 | 2.43 2.53 4.18 4.56 | 101 101 152 152 | M8 M8 M8 M8 | 6 6 9 9 | 41 41 41 41 | 186 179 244 224 | 112 112 158 149 | 1.41 1.35 1.45 1.55 |
| 65 70 | 95 110 | 59 66 | 51 56 | 34.4 45 | 30 40 | 102 117 | 4.94 6.5 | 152 186 | M8 M10 | 9 7 | 41 83 | 206 176 | 141 112 | 1.67 2.61 |
| 75 80 | 115 120 | 66 66 | 56 56 | 45 45 | 40 40 | 122 127 | 7 7.4 | 186 186 | M10 M10 | 7 7 | 83 83 | 165 153 | 107 102 | 2.75 2.89 |
| 85 90 | 125 130 | 66 66 | 56 56 | 45 45 | 40 40 | 132 137 | 9 9.6 | 213 213 | M10 M10 | 8 8 | 83 83 | 165 157 | 112 109 | 3.04 3.18 |
| 95 100 | 135 145 | 66 77 | 56 65 | 45 52 | 40 46 | 142 153 | 12.6 13.3 | 267 270 | M10 M12 | 10 7 | 83 145 | 185 153 | 130 105 | 3.33 4.62 |
| 110 120 | 155 165 | 77 77 | 65 65 | 52 52 | 46 46 | 163 173 | 14.7 18.4 | 270 309 | M12 M12 | 7 8 | 145 145 | 140 147 | 90 107 | 5.00 5.37 |
| 130 140 150 | 180 190 200 | 77 87.5 87.5 | 66 73.5 73.5 | 52 58.5 58.5 | 46 51 51 | 188 199 209 | 25.1 40.15 47 | 388 586 639 | M12 M14 M14 | 10 11 12 | 145 230 230 | 171 213 217 | 124 157 163 | 6.46 7.73 8.21 |
| 160 170 180 | 210 225 235 | 87.5 87.5 87.5 | 73.5 73.5 73.5 | 58.5 58.5 58.5 | 51 51 51 | 219 234 244 | 54.3 63 66 | 692 746 746 | M14 M14 M14 | 13 14 14 | 230 230 230 | 220 226 212 | 167 171 162 | 8.64 10.14 10.66 |
| Note: 1. The data listed in the table are without spacer; the rated load of the expansion sleeve when configured, and the rated load when configured with spacers is 62% of the listed load; 2. The mechanical performance grade of Z13 type expansion screws is 12.9. | ||||||||||||||
