Replacing the spider insert in a flexible flange coupling is one of the most straightforward — and most frequently deferred — maintenance tasks in industrial rotating machinery. The spider is a sacrificial wear component by design: it absorbs misalignment forces and vibration so that the motor bearings and pump mechanical seal do not have to. When the spider is worn, it needs to come out. Leaving a degraded spider in service to avoid a brief maintenance shutdown is a decision that consistently proves more expensive than the shutdown it avoids.
How to Identify That the Spider Insert Needs Replacing
Wear Stage
Visual Signs
Vibration / Noise
Recommended Action
Early
Minor surface cracking on lobe faces, slight discolouration
Slight vibration increase from baseline
Monitor — schedule replacement at next planned shutdown
Moderate
Deeper cracking, small chunks missing, rubber dust in guard
Noticeable vibration increase, possible slight noise on decel
Replace at next available opportunity — do not wait for next annual shutdown
Advanced
Major chunking, lobes compressed or torn, significant rubber debris
Clear vibration increase, audible knock on deceleration
Replace immediately — shut down machine at next safe opportunity
End-of-Life
Metal-to-metal contact between hub jaws, possible hub jaw damage
Sharp vibration spikes, loud slapping during coast-down
Emergency shutdown required — inspect hubs for jaw damage before fitting replacement
What You Need Before Starting the Replacement
Correct Replacement Spider
Confirm size code and hardness grade. Keep one spare on the shelf per coupling — they are inexpensive and a failed spider without a spare causes unplanned downtime.
Basic Hand Tools
Combination spanner set for coupling bolt removal. Soft mallet for hub separation. Clean rags and solvent for hub jaw cleaning.
Feeler Gauges
For checking the axial gap (DBSE) when refitting the hubs to the correct separation before recommissioning.
Inspection Light
For examining hub jaw condition once the worn spider is removed — jaw surface finish determines whether hubs can be reused.
Step-by-Step Spider Replacement Procedure
1
Lock Out and Tag Out the MachineEnsure the machine is electrically isolated and mechanically secured against inadvertent start-up before any work begins on the coupling. Remove the coupling guard and set it aside.
2
Remove the Coupling Guard and InspectWith the guard removed, rotate the coupling by hand through one full revolution while observing the spider element. Identify the extent of wear across all lobes and check for rubber debris patterns indicating which hub jaw surfaces are experiencing the highest contact loads.
3
Loosen Coupling Bolts If FittedOn bolted flexible flange couplings, remove the bolts connecting the two hub flange faces before separating the hubs. On jaw-type couplings without flanged bolts, the hubs are simply slid apart.
4
Separate the Two Hubs AxiallyMove one hub — typically the pump-side hub — away from the motor-side hub by 10–20 mm axially. On a spacer coupling with a drop-out tube, remove the spacer tube instead of moving any hub.
5

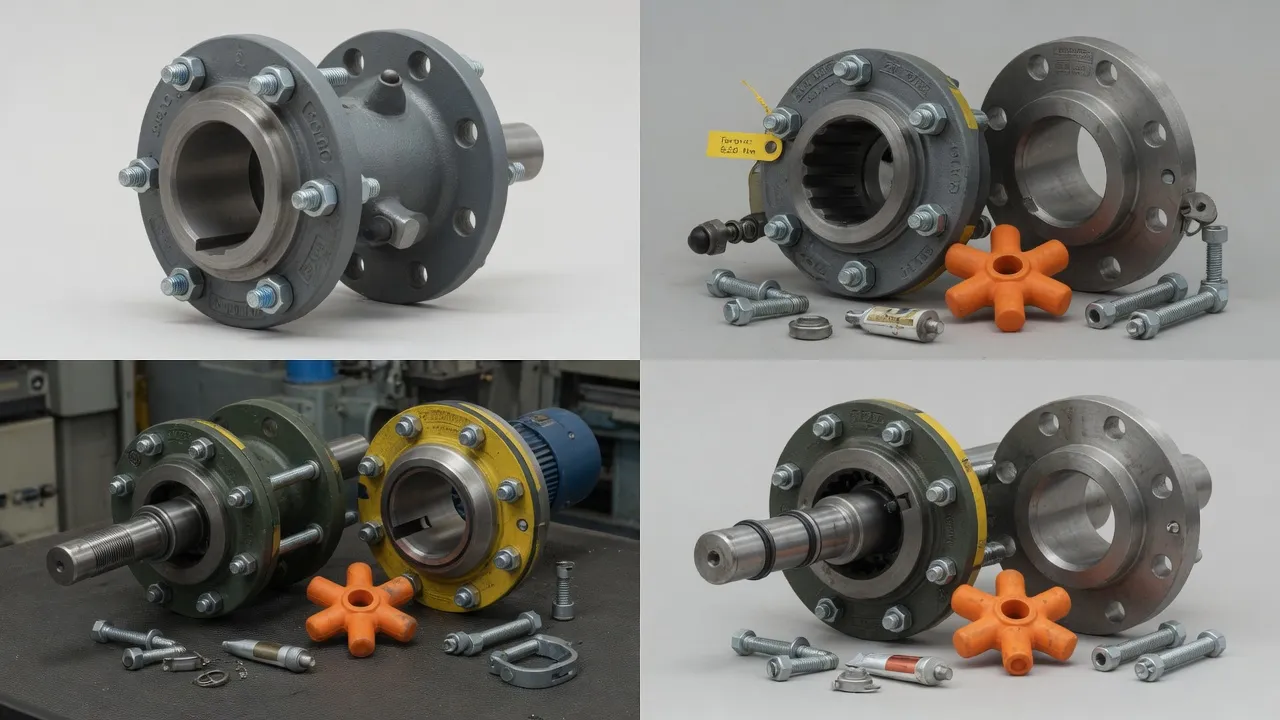

Remove the Worn SpiderWith the hubs separated, lift the spider element out from between the hub jaws. Note its orientation — some star-pattern spiders have a specific alignment relative to the hub jaw geometry. Photograph the orientation before removing if in doubt.
6
Inspect the Hub JawsInspect both sets of hub jaws with the inspection light. Jaw faces should be smooth with no cracking, scoring, or deformation. If metal-to-metal contact occurred, jaw surfaces will show bright metallic wear marks and possible peening. Mild surface marks can be dressed with a fine file. Deformed or cracked jaws require hub replacement.
7
Fit the New Spider InsertPlace the new spider into the motor-side hub jaw pockets. It should seat freely without requiring force — if tight, check that the correct size has been supplied. Do not apply adhesive or lubrication to the spider element or hub jaws. The spider transmits torque through compression in the hub jaw pockets — lubrication reduces friction contribution and effectively reduces torque capacity.
8
Re-engage the Pump Hub and Check DBSEMove the pump hub back into position, engaging the spider lobes with the pump hub jaws. Check the axial gap between hub faces matches the coupling datasheet DBSE specification using feeler gauges. Refit and torque coupling flange bolts if applicable, in a cross-pattern to the specified value.
9
Refit Guard, Commission, and RecordRefit the coupling guard before releasing the lock-out. Start the machine and allow it to run for 5–10 minutes under light load before checking for vibration and audible noise. Record the spider replacement date, hardness grade, and post-replacement vibration reading in the equipment file.
Frequently Asked Questions
How do I know which spider insert to order for my coupling?+
You need the coupling manufacturer’s size code and the spider material grade. The size code is usually stamped or cast into the hub body. If not visible, measure the coupling outer diameter and hub jaw depth and compare to the manufacturer’s dimensional table. For Ever Power flexible flange couplings, contact [email protected] with the coupling OD measurement and we will confirm the correct spider code.
Can I replace the spider without removing the coupling hubs?+
In most cases, yes. The two hubs remain on their respective shafts, and the spider element is replaced by moving the two hubs apart axially by a few millimetres — just enough to clear the spider lobes from the hub jaws. In split or drop-out spacer coupling designs, the spacer tube is removed first to provide axial access without moving the motor.
What happens if I run with a worn spider insert?+
A severely worn spider insert allows metal-to-metal contact between hub jaws. This produces high-amplitude impact vibration that can fail motor bearings within days to weeks. It also causes progressive wear on the hub jaws themselves — a problem that requires complete hub replacement. Running beyond the first signs of spider degradation is always more expensive than the scheduled replacement it avoids.
Should I replace one spider or both when one fails?+
Always replace the spider insert as a complete unit — it is a single elastomeric element in most coupling designs. If the hub jaws show scoring, rounding, or deformation from metal-to-metal contact, both hubs must be replaced along with the new spider — fitting a new spider onto damaged hub jaws results in accelerated spider wear and premature failure.
Can I use a spider insert from a different brand in my coupling?+
Many flexible coupling spider elements are dimensionally standardised — particularly in the jaw coupling range — and cross-brand compatibility is often possible if the overall diameter and jaw geometry match. For F-type tyre flexible flange couplings, Ever Power tyre elements are dimensionally compatible with most standard Fenaflex and equivalent hubs. Do not assume compatibility without checking the dimensional specification.
